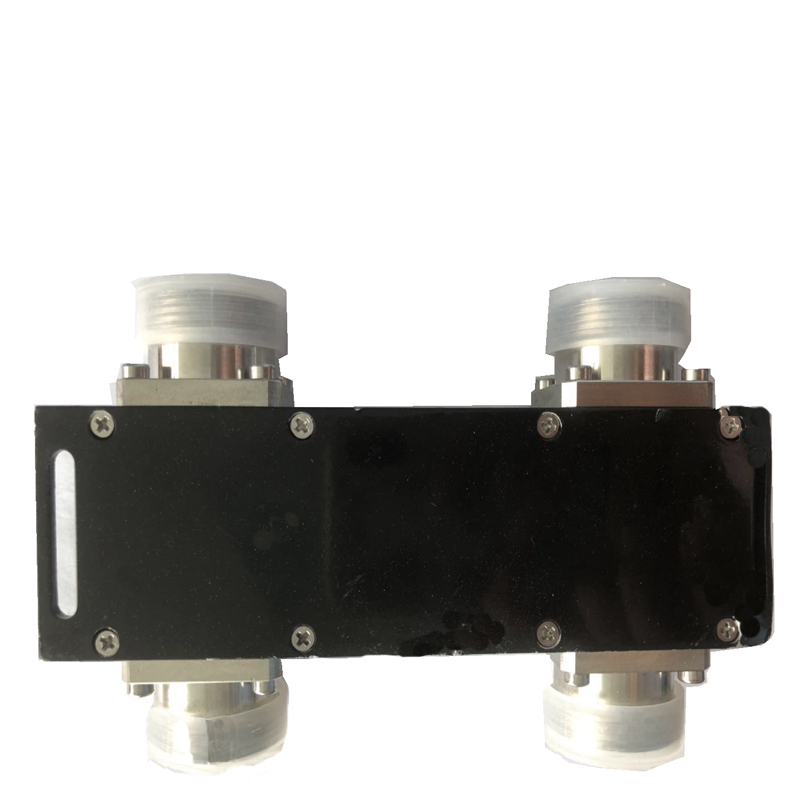

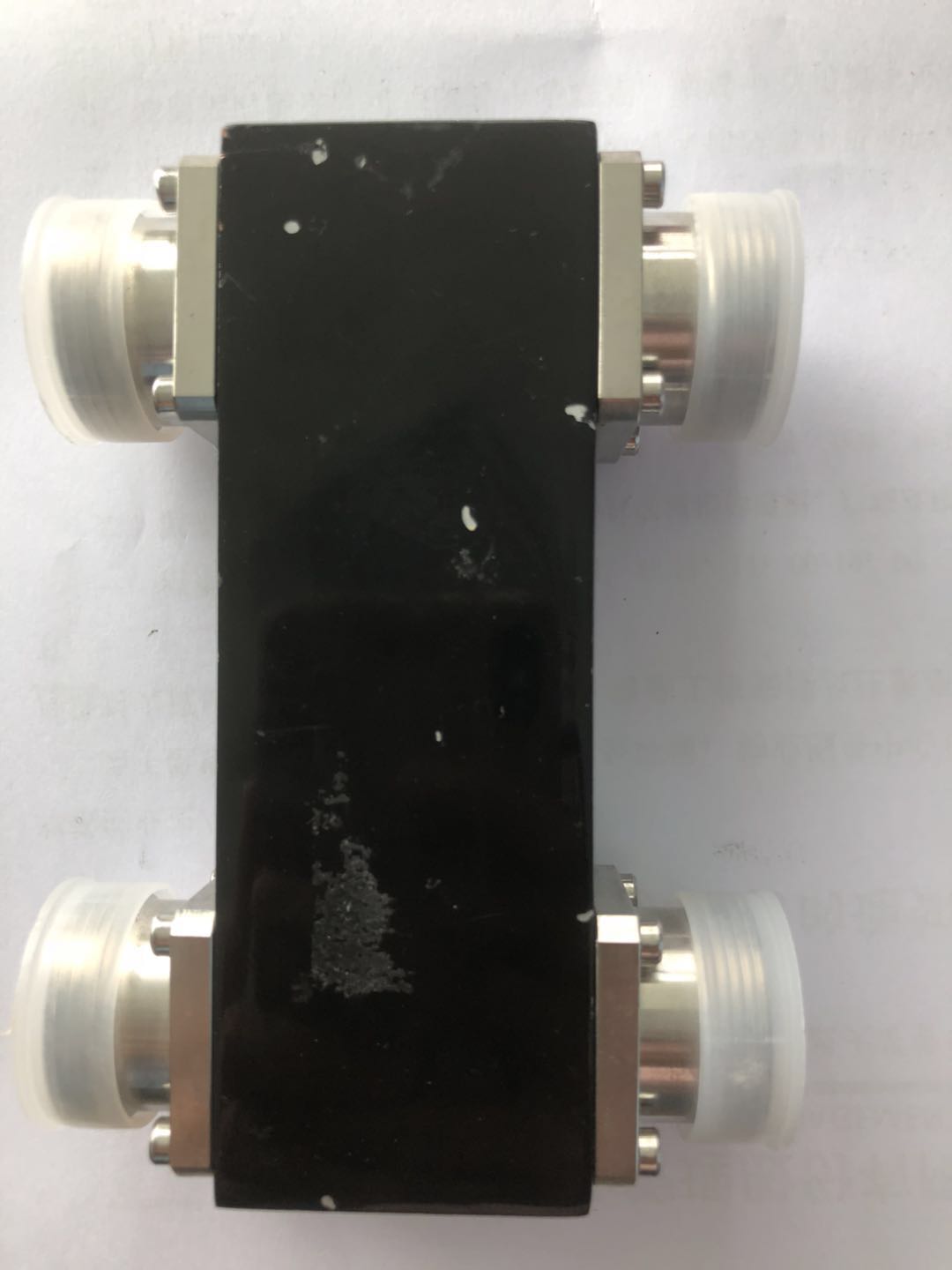

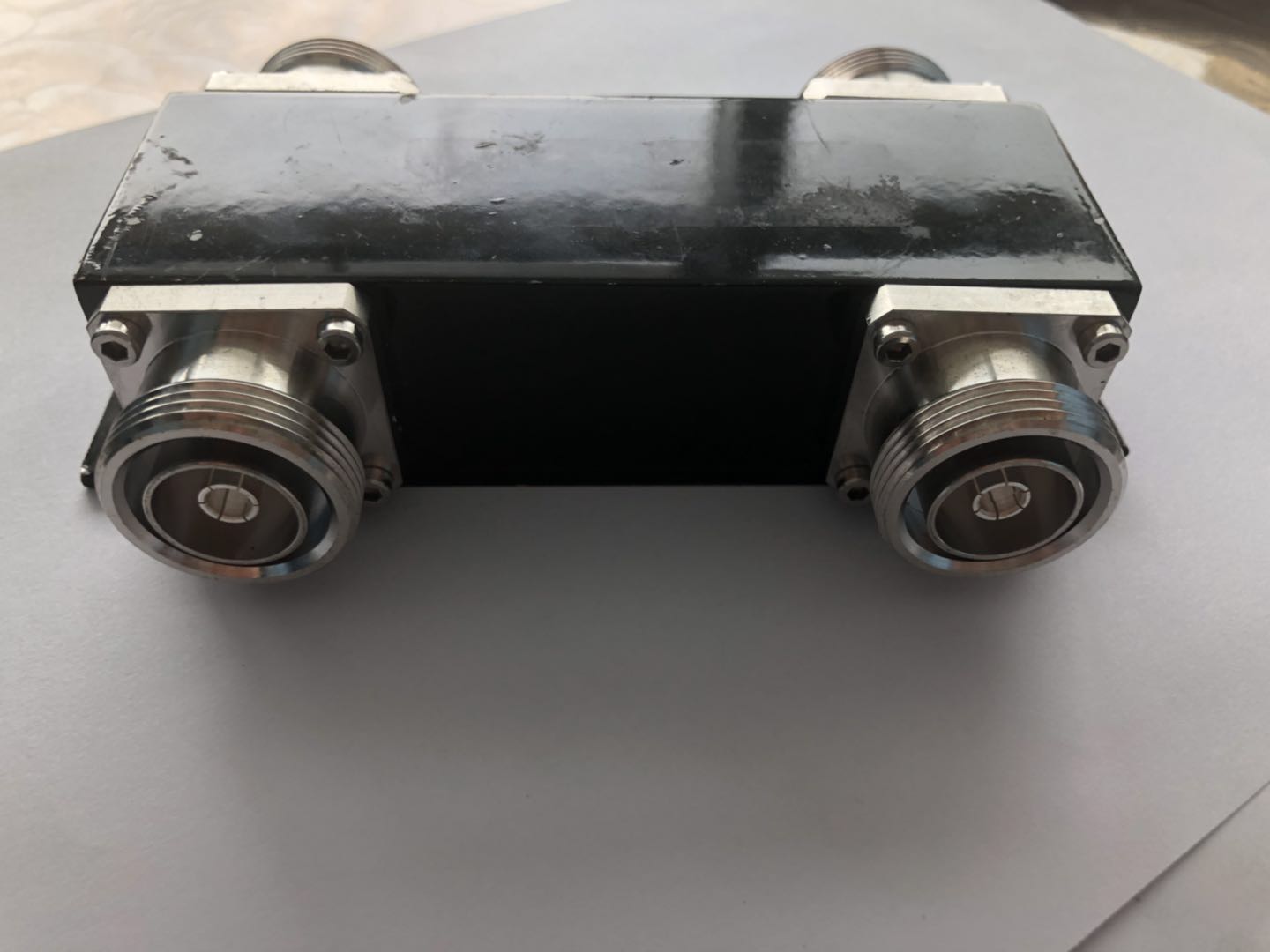

Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler

  • 1
  • 2
  • 3

Brand Name : ZD

Model Number : ZD-HC-825-200-2:2DF

Certification : RoHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C

Supply Ability : 10000pcs one month

Packaging Details : Standard exporting cartons or as customer required

Delivery Time : 3-15 days

Connector : DIN/N-female

Material: Cavity : Aluminum silver-plated

Environment : Outdoor

Frequency Range : 800-2500MHz

PIM (IM3) : <-155dBc @2×43dBm

Connectors Type : DIN-Female

Contact Now

Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler

Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems


DIN type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

Electrical Specifications:
Frequency Range 800-2500MHz 800-2700MHz 698-2700MHz
VSWR ≤1.2:1 ≤1.25:1 ≤1.25:1
Insertion Loss(dB) ≤3.5 ≤3.5 ≤3.5
In-band Ripple(dB) ≤0.5 ≤0.5 ≤0.6
Isolation(dB) ≥25 ≥25 ≥25
Average Power(W) 200/300/500 200/300/500 200/300/500
3rd Order IMD(dBc) ≤-120/-140/-150@2X43dBm ≤-120/-140/-150@2X43dBm ≤-120/-140/-150@2X43dBm
Impedance(Ω) 50 50 50
Connectors Type DIN-Female DIN-Female DIN-Female
Operating Temp.(℃) -20~+55 -20~+55 -20~+55
Application For Indoor or Outdoor Use For Indoor or Outdoor Use For Indoor or Outdoor Use
Finish Black Plated Black Plated Black Plated

Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid couplerPassive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid couplerPassive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler
