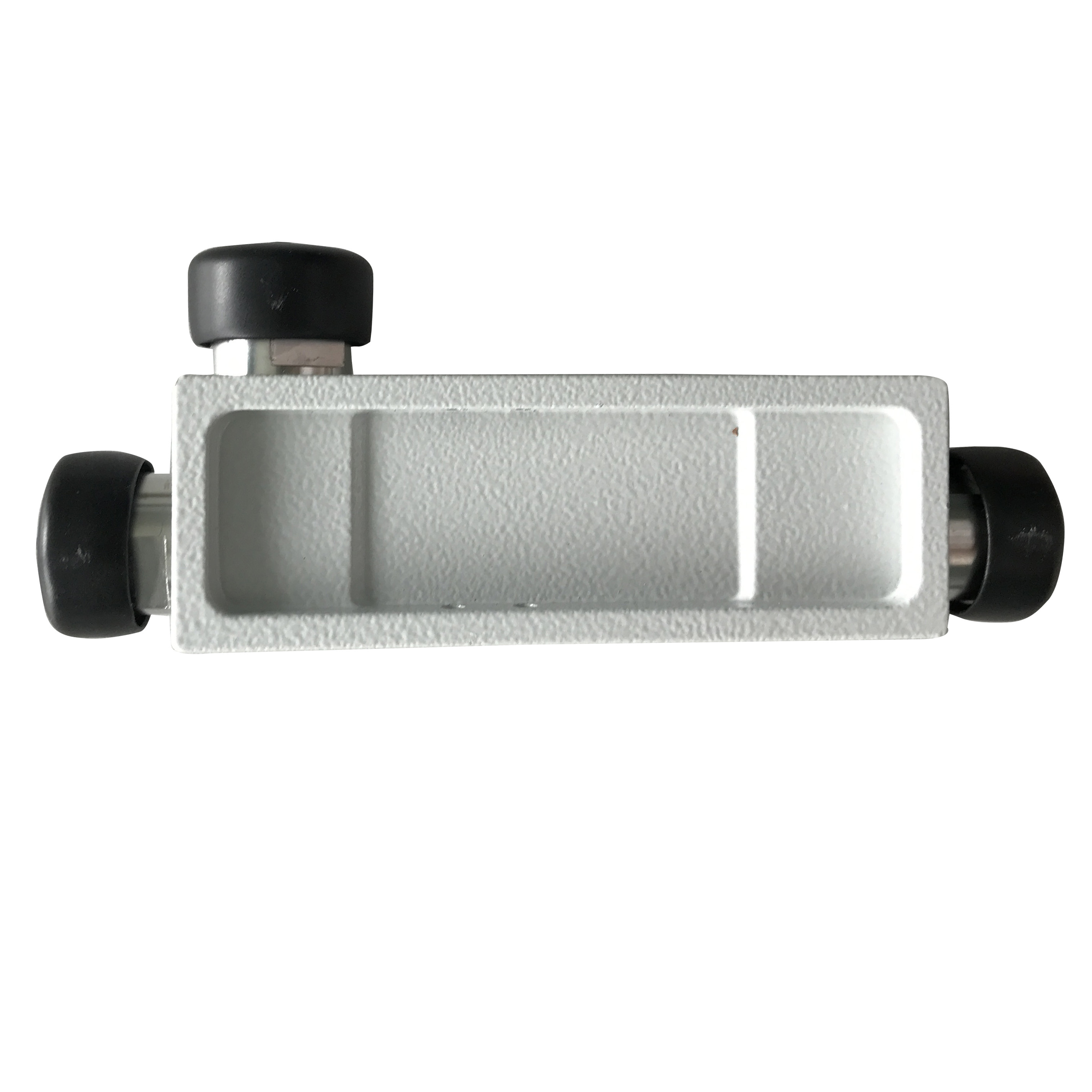

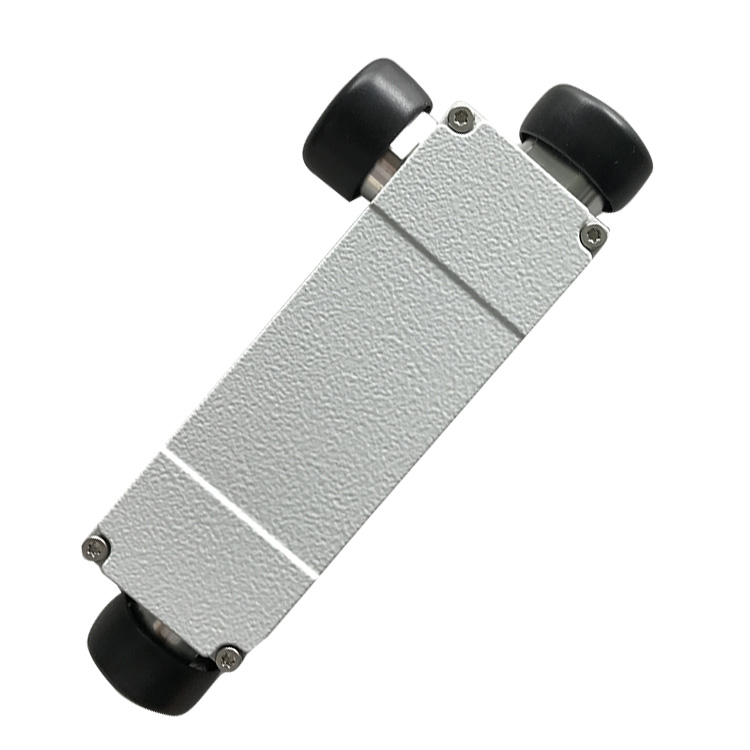

30db Microwave Broadband Rf Transformer Directional Couplers Wide Frequency Range

Brand Name : ZD

Model Number : ZD-DCG-727-200-30DF

Certification : ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Packaging Details : Standard exporting cartons or as customer required

Delivery Time : 3-15 days

Frequency Range : 698-2700MHz

Average Power(W) : ≤200

Operating Temperature(℃) : -20~+55

Connectors Type : DIN or N-Female

3rd Order IMD(dBc) : ≤-120/-140/-150@2X43dBm

Finish : Black Plated

Contact Now

Wide Frequency Range DIN Female telecom parts high power coupler n female 5db rf directional couple

Directional coupler is widely used in cellular communication system, it could make the allocation of signal power according to a certain proportion .Directional couplers are mainly used in mobile communication and broadcast systems, or as a measuring device for coupling out signals for monitoring they are the key components in in-building systems. The lightweit design allows easy attachment to a wall using the supplied bracket.30db Microwave Broadband Rf Transformer Directional Couplers Wide Frequency Range30db Microwave Broadband Rf Transformer Directional Couplers Wide Frequency Range30db Microwave Broadband Rf Transformer Directional Couplers Wide Frequency Range

Electrical Specifications:
Coupling(dB) 5 6 7 8 10 12 15 20 25 30 35 40
Attenuation(698-2700) ±0.8 ±1 ±1.2 ±1.2 ±1.2 ±1.5
Insertion Loss(dB) ≤2.1 ≤1.65 ≤1.3 ≤1.1 ≤0.75 ≤0.6 ≤0.4 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Frequency Range 698-2700MHz
VSWR ≤1.22
Directivity(dB) ≥20 ≥18
Average Power(W) ≤200
3rd Order IMD(dBc) ≤-120/-140/-150@2X43dBm
Impedance(Ω) 50
Connectors Type DIN or N-Female
Operating Temperature(℃) -20~+55
Application For Indoor or Outdoor Use
Finish Black Plated
