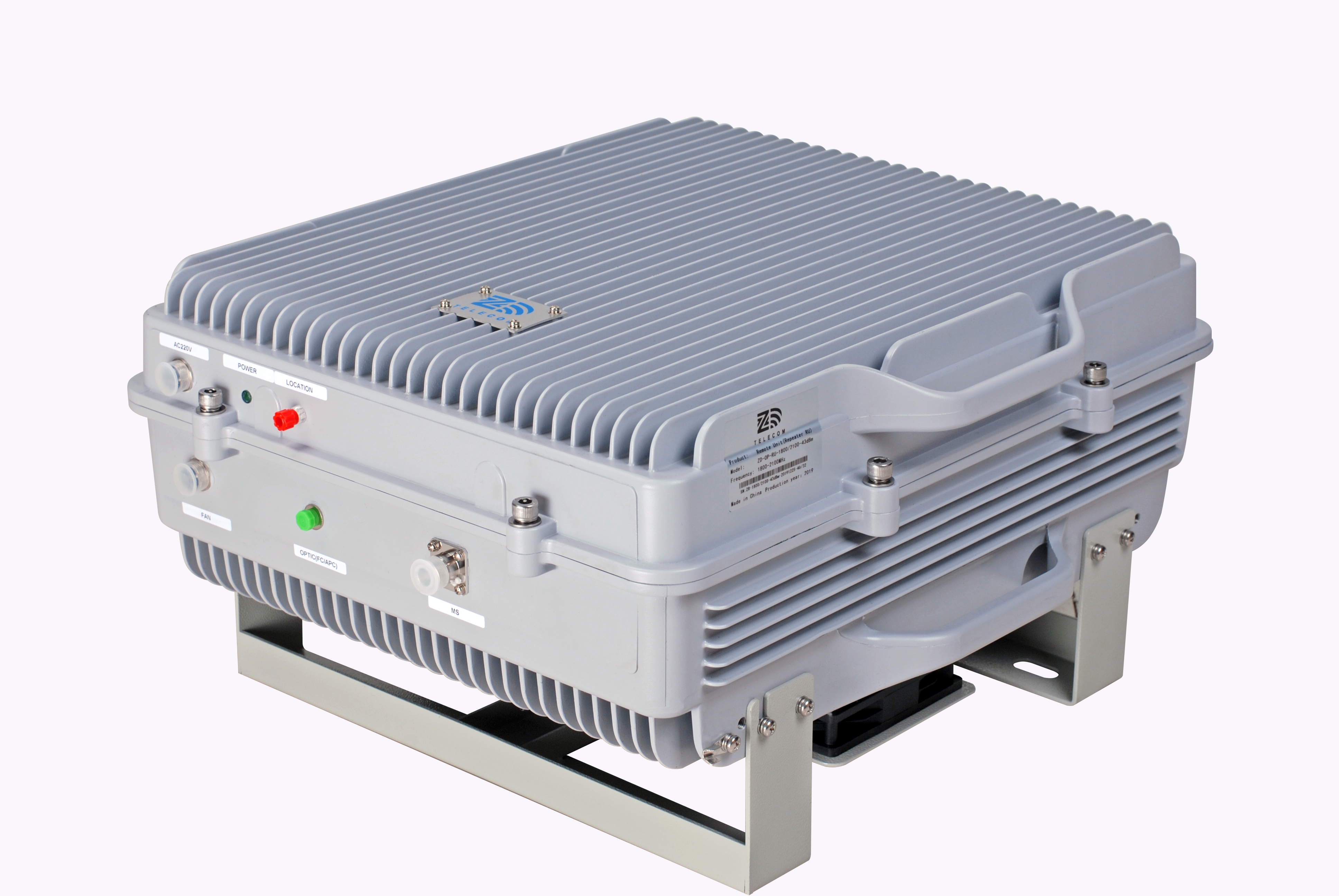

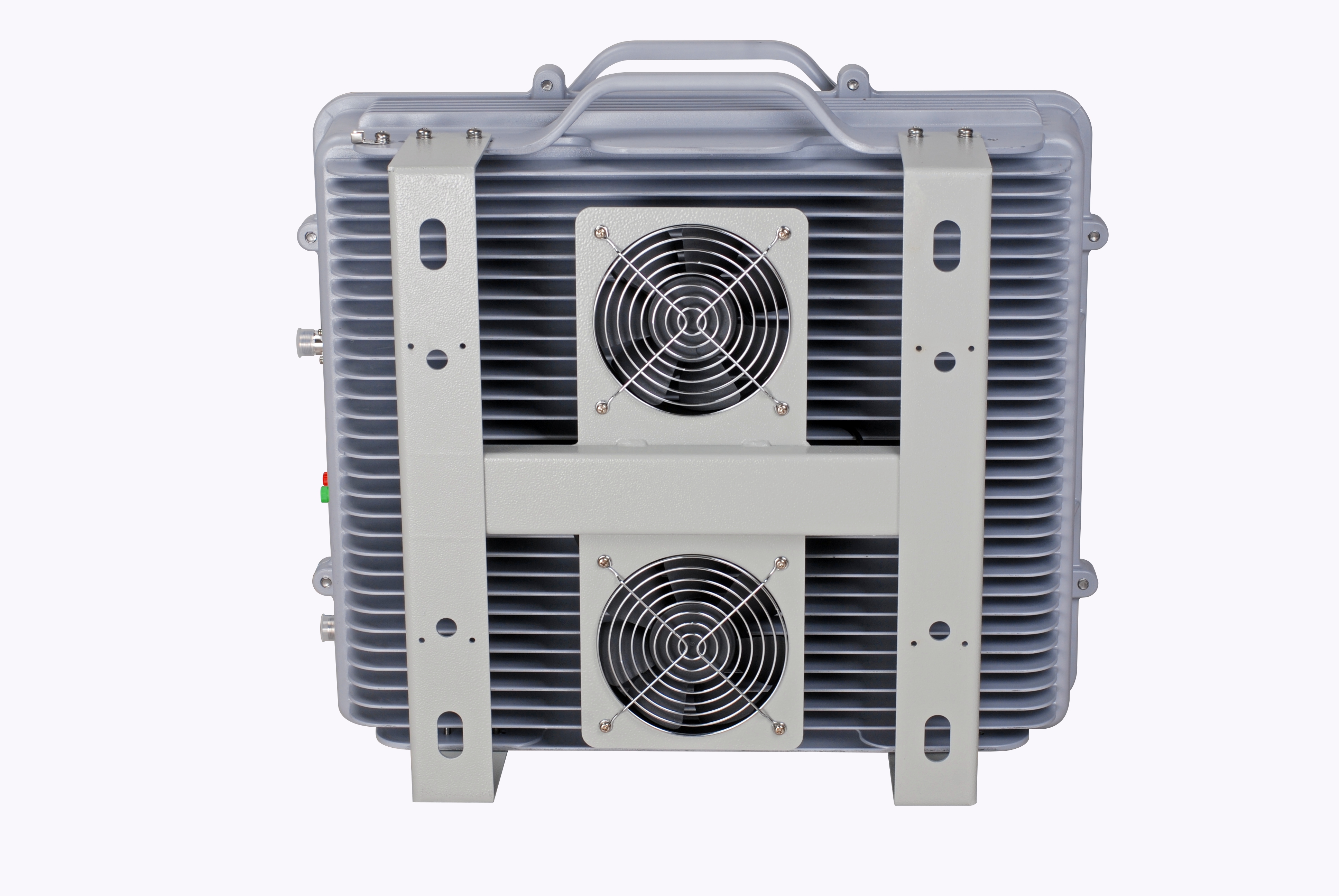

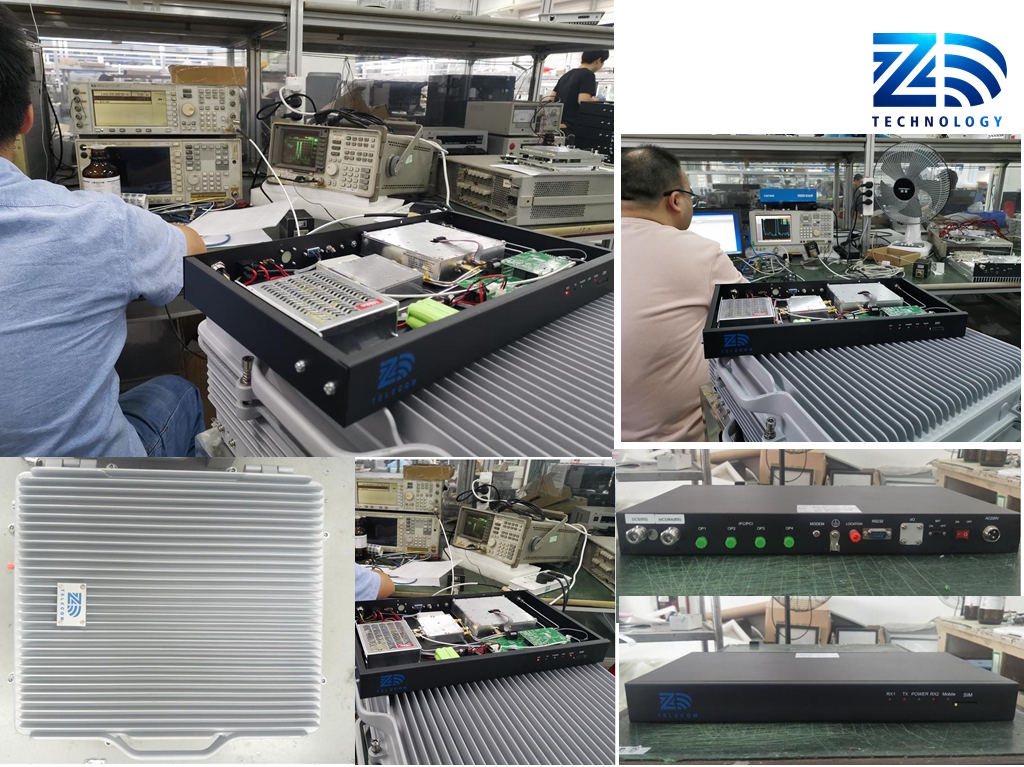

DCS1800-75M+WCDMA2100-60M-43dBm(MIMO) Dual Band Direct Coupling

Brand Name : ZD

Model Number : 006

Certification : RoHS

Place of Origin : china

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100pcs one month

Delivery Time : 20-30days

Packaging Details : Standard exporting cartons or as customer required

RF Connector : N-Female

MTBF : ≥50000 hours

Relative Humidity : Max. 95%

Working band : 40MHZ

Enclosure Protection : IP65

Impendence : 50ohm

Contact Now

DCS1800-75M+WCDMA2100-60M-43dBm(MIMO) Dual Band Direct Coupling

Specifications

Items		Specifications
Items		Uplink (MAIN/MIMO)	Downlink (MAIN/MIMO)
Frequency Range (MHz)	DCS1800 Band	1710 ~ 1785	1805 ~ 1880
Frequency Range (MHz)	WCDMA2100 Band	1920 ~ 1980	2110 ~ 2170
Max. Output Power (dBm) (Max. Gain, Center Frequency )		-10±2	43±2
Max. Gain (dB) ( Center Frequency ) @Optical Loss=0dB		55±3	55±3
ATT Adjustable Range (dB)		0 ~ 30	0 ~ 30
ATT Adjustable Step (dB)		1	1
ATT Adjustable Error (dB)		≤ \|±1.5\|	≤ \|±1.5\|
ALC Range (dB)		0 ~ 20	0 ~ 20
ALC Accuracy (dB)		≤ \|±2.0\|	≤ \|±2.0\|
Frequency Error (ppm)		≤± 0.05	≤± 0.05
Ripple In Band (dB)at 25℃	DCS1800 Band	≤ 7.0	≤ 7.0
Ripple In Band (dB)at 25℃	WCDMA2100 Band	≤ 6.0	≤ 6.0
3rd Inter-modulation attenuation (dBc) (Max. Gain, Dual tone interval of 600KHz)		≤ -40	≤ -40
EVM (%)@WCDMA2100		≤12.5	≤12.5
PCDE (dB) @WCDMA2100		≤-35	≤-35
Out of band Spurious Emission (dBm) at offset ±10MHz	9kHz~150kHz	≤ -36/1KHz	≤ -36/1KHz
	150kHz~30MHz	≤ -36/10KHz	≤ -36/10KHz
	30MHz~1GHz	≤ -36@100KHz	≤ -36@100KHz
	1GHz~12.75GHz	≤ -5@1MHz	≤ -5@1MHz
Time Delay (us)		≤5	≤5
VSWR(Power up, Min Gain, Pin=-30dBm)	DCS1800 Band	≤ 1.8	≤ 1.8

		UMTS2100 Band	≤ 1.8	≤ 1.8
Noise Figure (dB) (Max. Gain)			≤ 7.0	/
Absolute Maximum Input RF Power(1 min)			UL:≤-10dBm DL:≤10dBm
Optical Specifications	Optical Connector	MU	FC/APC4 (MAIN)+FC/APC4 (MIMO)
		RU(MAIN)	FC/APC*1
		RU(MIMO)	FC/APC*1
	Optical Wavelength (nm)	MU	(MAIN)TX:1550 / RX:1310; Single Mode (MIMO)TX:1550 / RX:1310; Single Mode
		RU(MAIN)	TX:1310 / RX:1550; Single Mode
		RU(MIMO)	TX:1310 / RX:1550; Single Mode
	Optical Output Power (dBm)	MU	(MAIN)-2±3 (MIMO)-2±3
		RU(MAIN)	4.5±3
		RU(MIMO)	4.5±3
	Fiber optic path attenuation range(dB)		0~7
Radio Connector		MU	(MAIN)N(f)2 (D-BTS1,W-BTS1) (MIMO)N(f)2 (D-BTS1,W-BTS1)
		RU(MAIN)	N(f)*1
		RU(MIMO)	N(f)*1
Weight		MU(MAIN/MIMO)	6
		RU(MAIN)	35
		RU(MIMO)	35
Impedance (Ω)			50
Power Supply		MU(MAIN/MIMO)	AC220V,50Hz
		RU(MAIN)	AC220V,50Hz
		RU(MIMO)	AC220V,50Hz
Power Consumption (W)		MU(MAIN/MIMO)	≤60
		RU(MAIN)	≤350
		RU(MIMO)	≤350
Dimension (mm)		MU(MAIN/MIMO)	48230044(19"1U)

RU(MAIN) 489*409*186.5

RU(MIMO) 489*409*186.5

Environmental Class MU(MAIN/MIMO) IP20(Indoor)

RU(MAIN) IP55(Outdoor)

RU(MIMO) IP55(Outdoor)

Operating Temperature (℃) MU(MAIN/MIMO) -5 ~ +45

RU(MAIN) -25 ~ +55

RU(MIMO) -25 ~ +55

Humidity (%) MU(MAIN/MIMO) 0~80

RU(MAIN) 0~95

RU(MIMO) 0~95

Enclosure Cooling MU(MAIN/MIMO) convection

RU(MAIN) FAN

RU(MIMO) FAN

Installation Type MU(MAIN/MIMO) Rack

RU(MAIN) Wall

RU(MIMO) Wall

Control Function MU(MAIN/MIMO) Local with RS-232(DB9)

Remote with Wireless (GSM Modem)

RU(MAIN/MIMO) Local with RS-232(DB9)

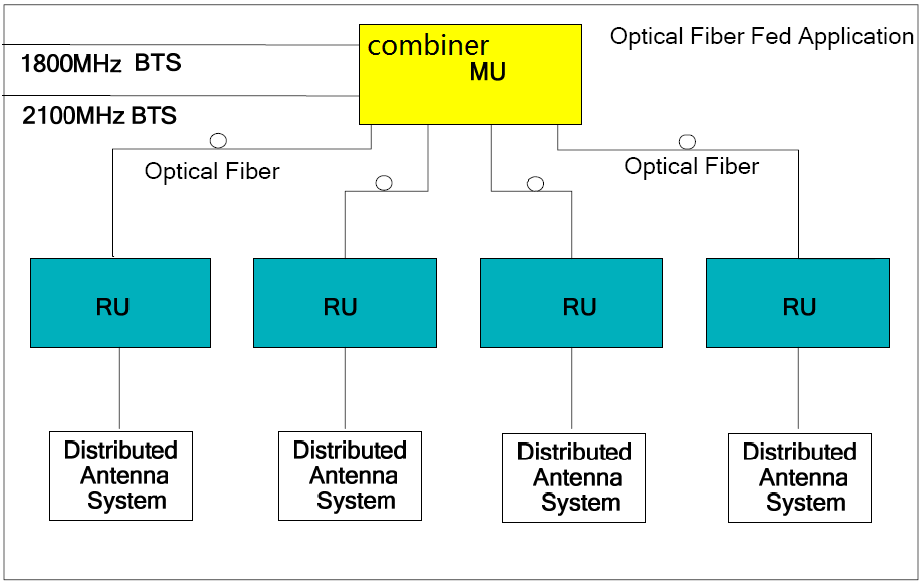

Schematic diagram

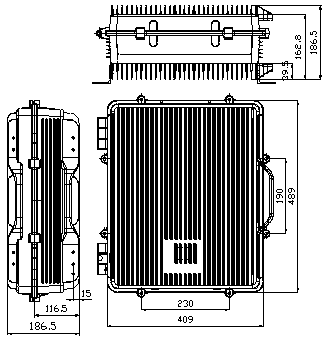

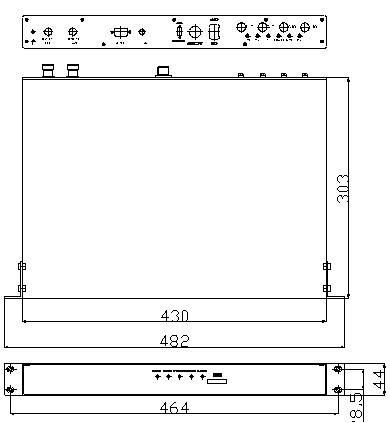

Outline Dimension:MU,Passive Unit
